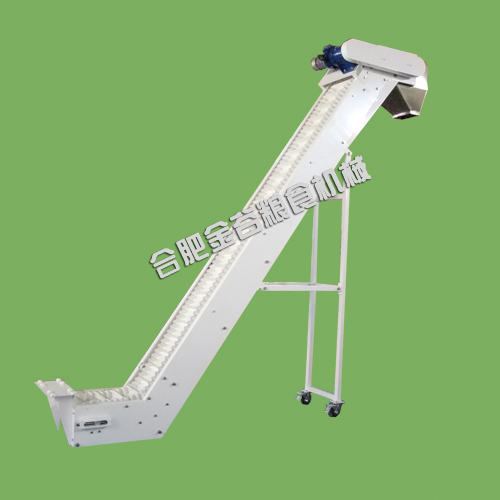

該輸送機為特殊Z型移動式膠帶輸送機，廣泛應用于食品、茶葉、谷物、化工原料等顆粒狀散裝物料的運輸和裝載輸送。輸送帶兩側焊有裙邊以防物料灑落，中間焊有擋板以提供輸送能力并增大傾角。機尾配有特殊進料斗使物料不回落、機頭配有收集出料嘴、整機下側配有擋板和小簸箕以收集帶出的物料、機架底座配有萬向輪可隨意移動、工作臺配有可調節地腳以方便調平、調高。尤其該機輸送傾角大可減少占用場地，對物料不破損、無回料的優點深受廣大用戶喜愛。
This type of conveyer is specially designed as Z shape for conveying with tapes. It can be widely used for loading and conveying grain in bulks like food, tea, cereal, chemical materials and so on. Edges are welded along both sides of the tapes to prevent materials falling, and a shield in the center position to better improve conveying effects and expand inclination, while in the end of the machine there is special feed hopper to protect materials from falling back. There is discharge nozzle equipped in front of the machine. Shields and small sized pans are equipped down the machine to collect materials spilled out. The machine has universal wheel on the chassis for free moving. Workbench can be adjusted both horizontal and vertical with tail edges. The special big inclination of this type of machine in conveying can reduce the total space used, and can ensure materials in good shape with no fall back. These advantages are very popular and welcomed by its users.
主要技術參數（Major technical parameters）
|
線速度Linear velosity（m/s） |
0.1-0.5 |
|
|
功率Power（kw） |
0.75 |
|
|
型號Type |
TDSX45-4 |
|
|
輸送角度Conveying Inclination |
55-60 |
角度可根據客戶要求定制。 | |
